Electromagnetic Induction

AP Physics C: Electricity and Magnetism · Topic 13

Video lesson for this topic Open the video page
9:11

Electromagnetic Induction

Almost every watt of electricity you have ever used began the same way, with a magnet and a coil of wire moving past each other. No fuel, no burning: only…

English narration · English + 中文 subtitles burned in

13.1

Magnetic Flux

Syllabus
Learning ObjectiveEssential Knowledge

13.1.A
Describe the magnetic flux through an arbitrary area or geometric shape.

  • 13.1.A.1 For a magnetic field $\vec{B}$ that is constant across an area $\vec{A}$, the magnetic flux through the area is defined as $\Phi_B = \vec{B} \cdot \vec{A}$ .
    • 13.1.A.1.i The area vector is defined as perpendicular to the plane of the surface and outward from a closed surface.
    • 13.1.A.1.ii The sign of flux is given by the dot product of the magnetic field vector and the area vector.
  • 13.1.A.2 The total magnetic flux passing through a surface is defined by the surface integral of the magnetic field over the surface area.
    • Equation: $\Phi_B = \displaystyle\int \vec{B} \cdot d\vec{A}$

Source: College Board AP Course and Exam Description

Put an iron pan on an induction hob and it is hot within seconds, yet the glass top under it stays cool, and a glass bowl placed there would not warm up at all. Under the glass is a coil carrying a rapidly alternating current. Its changing magnetic field induces currents in the metal base of the pan, and those currents heat the pan directly. Electric guitars, wireless phone chargers, transformers and every power-station generator use the same idea: a changing magnetic flux makes an emf. This unit is about how to calculate that emf, its direction, and the forces and energy that come with it.

Magnetic flux 磁通量 measures how much magnetic field passes through a surface. For a uniform field through a flat loop it is the dot product $\Phi_B=\vec{B}\cdot\vec{A}=BA\cos\theta$; in general it is the surface integral 面积分

$$\Phi_B=\int \vec{B}\cdot d\vec{A}.$$

The area vector 面积矢量 is perpendicular to the surface (outward from a closed one), and the sign of the flux comes from the dot product. Flux changes if $B$ changes, the area changes, or the loop turns – keep all three routes in mind, because each one is an exam question.

Worked example (flux from a long wire). A long straight wire carries $I=20\ \text{A}$. A rectangular loop lies in the same plane, with its sides of length $b=0.30\ \text{m}$ parallel to the wire, its near side $a=0.010\ \text{m}$ away and its far side $c=0.060\ \text{m}$ away. The field $B=\dfrac{\mu_0 I}{2\pi r}$ changes across the loop, so cut it into strips of width $dr$ and area $b\,dr$:

$$\Phi_B=\int_a^c\frac{\mu_0 I}{2\pi r}\,b\,dr=\frac{\mu_0 Ib}{2\pi}\ln\frac{c}{a}=(2.0\times10^{-7})(20)(0.30)\ln6=2.2\times10^{-6}\ \text{Wb}.$$

If the current falls steadily to zero in $0.10\ \text{s}$, the average emf in the loop is $2.2\times10^{-5}\ \text{V}$.

Explore

When is the magnetic flux greatest?

Magnetic flux depends on how the loop is oriented in the field. Sort each case.

Vocabulary Train
English
Magnetic flux/mæɡˈnetɪk flʌks/
surface integral/ˈsɜːfɪs ˈɪntɪɡrəl/
area vector/ˈeərɪə ˈvektə/
13.2

Electromagnetic Induction

Syllabus
Learning ObjectiveEssential Knowledge

13.2.A
Describe the induced electric potential difference resulting from a change in magnetic flux.

  • 13.2.A.1 Faraday's law describes the relationship between changing magnetic flux and the resulting induced emf in a system.
    • Equation: $\mathcal{E} = -\dfrac{d\Phi_B}{dt} = -\dfrac{d\left(\vec{B} \cdot \vec{A}\right)}{dt}$
    • 13.2.A.1.i When the area of the surface being considered is constant, the induced emf is equal to the area multiplied by the rate of change in the component of the magnetic field perpendicular to the surface.
    • 13.2.A.1.ii When the magnetic field is constant, the induced emf is equal to the magnetic field multiplied by the rate of change in area perpendicular to the magnetic field.
    • 13.2.A.1.iii When an emf is induced in a long solenoid, the total induced emf is equal to the induced emf in a single loop multiplied by the number of loops in the solenoid.
      • Equation: $\left|\mathcal{E}_{\text{sol}}\right| = N\left|\dfrac{d\Phi_B}{dt}\right|$
  • 13.2.A.2 Lenz's law is used to determine the direction of an induced emf resulting from a changing magnetic flux.
    • 13.2.A.2.i An induced emf generates a current that creates a magnetic field that opposes the change in magnetic flux.
    • 13.2.A.2.ii The right-hand rule is used to determine the relationships between current, emf, and magnetic flux.
  • 13.2.A.3 Maxwell's equations are the collection of equations that fully describe electromagnetism. Maxwell's third equation is Faraday's law of induction, which describes the relationship between a changing magnetic flux and an induced electric field.
    • Equation: $\mathcal{E} = \oint \vec{E} \cdot d\vec{\ell} = -\dfrac{d\Phi_B}{dt}$
  • 13.2.A.4 Maxwell's equations can be used to show that electric and magnetic fields obey wave equations and that electromagnetic waves travel at a constant speed in free space.
    • Equation (derived): $c = \dfrac{1}{\sqrt{\varepsilon_0 \mu_0}}$

Boundary statement: AP Physics C: Electricity & Magnetism does not expect students to mathematically derive the speed of light in free space from Maxwell's equations. This relationship is included above solely as an indication of the further applications, implications, and connections to physical phenomena that students may study in more advanced physics courses.

Source: College Board AP Course and Exam Description

Electromagnetic induction

A changing flux induces an emf 电动势 – Faraday's law 法拉第定律:

$$\varepsilon=-\frac{d\Phi_B}{dt}.$$

With constant area, $\varepsilon=-A\,\dfrac{dB_\perp}{dt}$; with constant field, $\varepsilon=-B\,\dfrac{dA_\perp}{dt}$. A coil of $N$ turns multiplies the single-loop emf: $|\varepsilon_{\text{sol}}|=N\left|\dfrac{d\Phi_B}{dt}\right|$.

Lenz's law 楞次定律 is the minus sign: the induced current 感应电流 flows so that its own magnetic field opposes the change in flux that created it. Push a magnet toward a loop and the loop pushes back; pull it away and the loop pulls it in. Use the right-hand rule 右手定则 to turn "oppose the change" into a current direction.

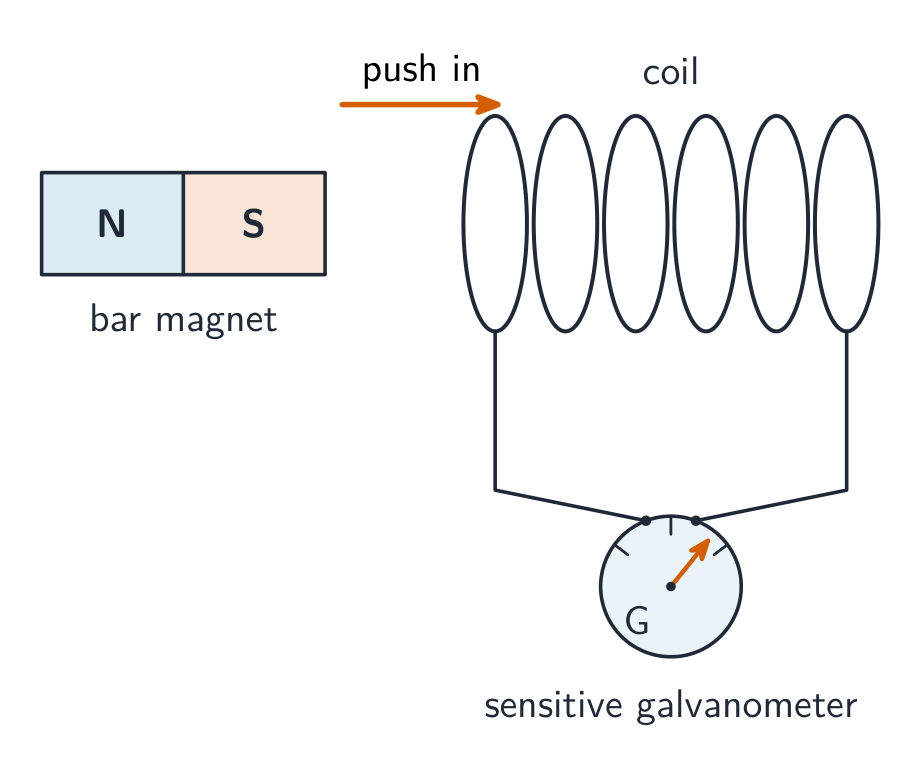

Moving a magnet into a coil induces an e.m.f. that drives a current
Moving a magnet into a coil induces an e.m.f. that drives a current

A rod of length $L$ sliding at speed $v$, with the rod, velocity and magnetic field mutually perpendicular, is the special case worth memorising – the motional emf 动生电动势 $\varepsilon=BLv$.

Worked example. A $0.20\ \text{m}$ rod slides at $3.0\ \text{m/s}$ across a $0.50\ \text{T}$ field: $\varepsilon=BLv=0.50(0.20)(3.0)=0.30\ \text{V}$. Equivalently, if a single loop's flux drops from $0.020\ \text{Wb}$ to $0.008\ \text{Wb}$ in $0.030\ \text{s}$, the average emf is $\varepsilon=\dfrac{0.012}{0.030}=0.40\ \text{V}$.

Faraday's law is also the third of Maxwell's equations 麦克斯韦方程组, in a deeper form: a changing magnetic flux creates a circulating electric field, $\oint\vec{E}\cdot d\vec{l}=-\dfrac{d\Phi_B}{dt}$ – that field is what pushes the charges around the loop. Together, Maxwell's equations predict electromagnetic waves 电磁波 travelling at $c=1/\sqrt{\varepsilon_0\mu_0}$ (you should know this connection, but AP will not ask you to derive it).

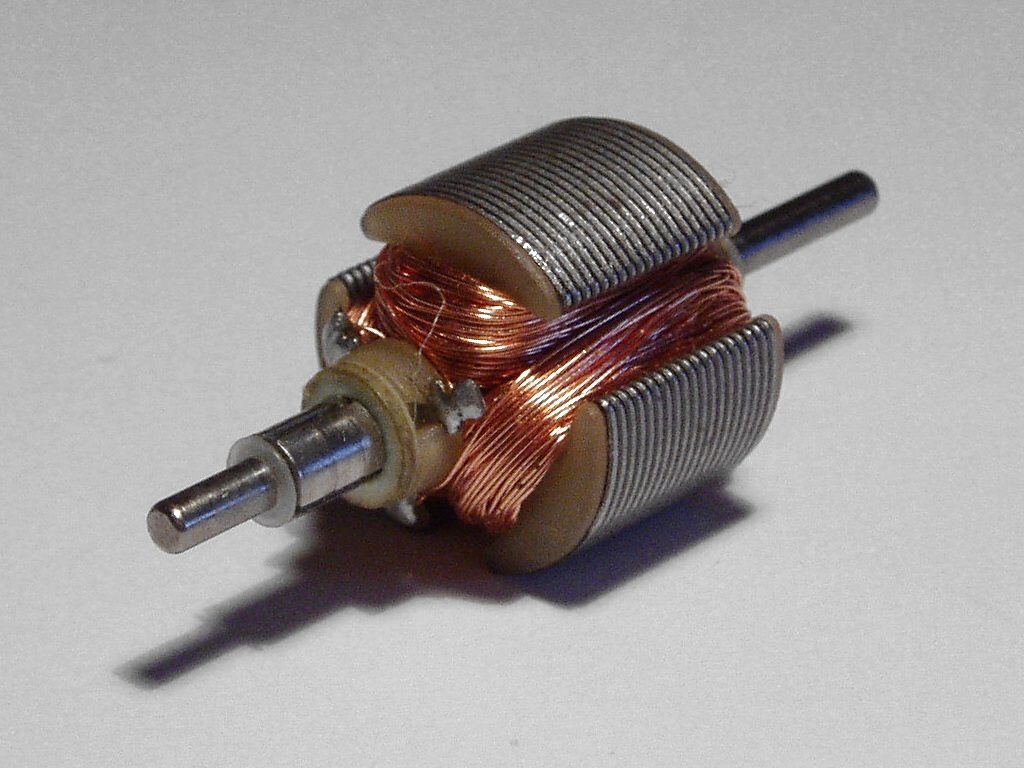

The coiled rotor of an electric motor
Coils of wire spinning in a magnetic field: moving them past the field induces a current, the basis of a generator

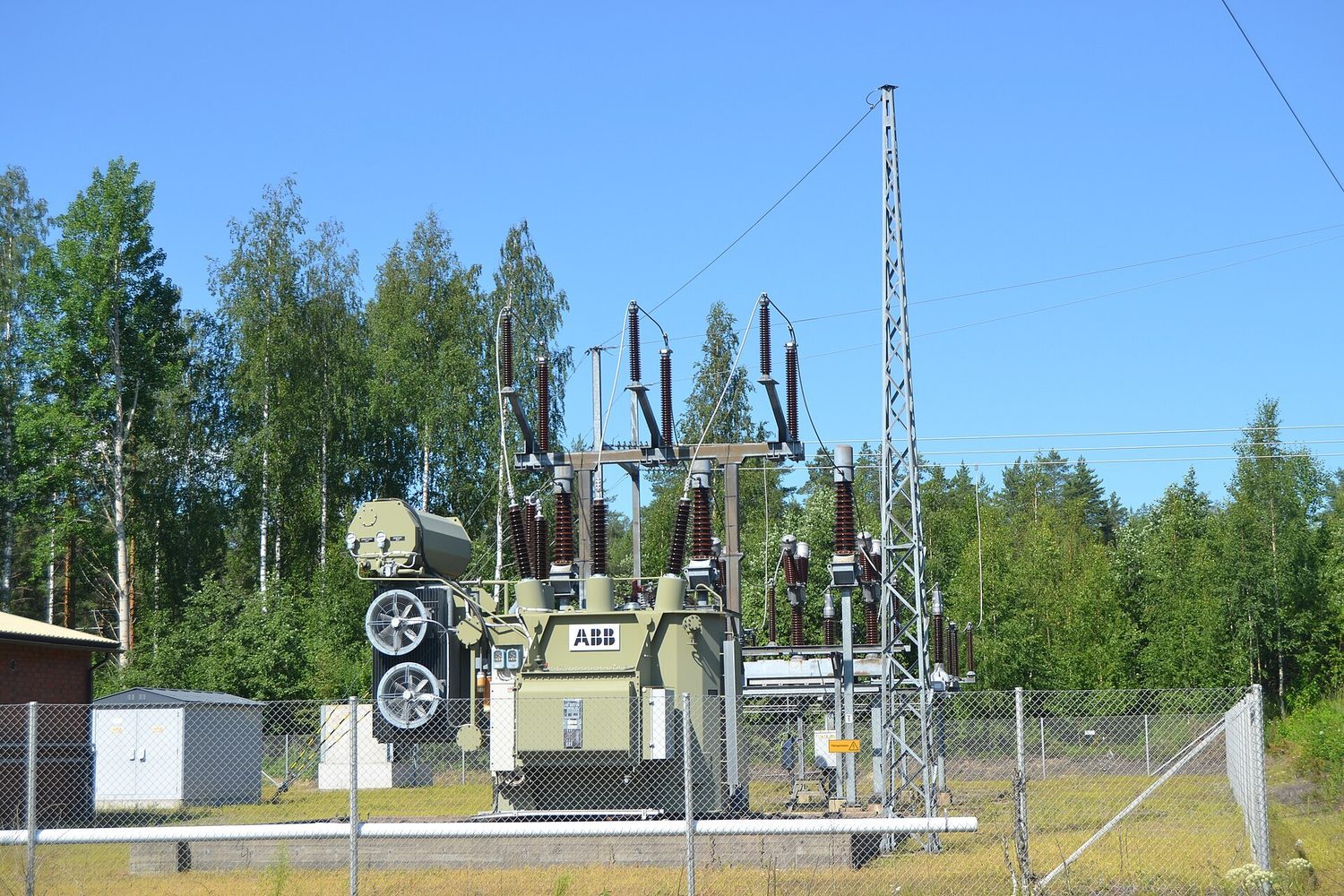

A substation transformer: changing magnetic flux in coils induces the voltages that power the grid
A substation transformer: changing magnetic flux in coils induces the voltages that power the grid
Explore

Induce a current by moving a magnet

A changing magnetic flux through a coil induces an EMF (Faraday's law); its direction opposes the change (Lenz's law). Move the magnet faster for a bigger EMF.

Vocabulary Train
English
emf/emf/
Faraday's law/ˈfærədeɪz lɔː/
Lenz's law/ˈlentsɪz lɔː/
induced current/ɪnˈdjuːst ˈkʌrənt/
right-hand rule/raɪt hænd ruːl/
motional emf/ˈməʊʃənl emf/
Maxwell's equations/ˈmækswelz ɪˈkweɪʒnz/
electromagnetic waves/ɪˌlektrəʊməɡˈnetɪk weɪvz/
13.3

Induced Currents and Magnetic Forces

Syllabus
Learning ObjectiveEssential Knowledge

13.3.A
Describe the force exerted on a conductor due to the interaction between an external magnetic field and an induced current within that conductor.

  • 13.3.A.1 When an induced current is created in a conductive loop, the already-present magnetic field will exert a magnetic force on the moving charge carriers within the loop.
    • Equation: $\vec{F}_B = \displaystyle\int I\left(d\vec{\ell} \times \vec{B}\right)$
  • 13.3.A.2 When current is induced in a conducting loop, magnetic forces are only exerted on the segments of the loop that are within the external magnetic field. These magnetic forces may cause translational or rotational acceleration.
  • 13.3.A.3 The force on a conducting loop is proportional to the induced current in the loop, which depends on the rate of change of magnetic flux, the resistance of the loop, and the velocity of the loop.
  • 13.3.A.4 Newton's second law can be applied to a conducting loop moving in a magnetic field as it experiences an induced emf.

Source: College Board AP Course and Exam Description

Once an induced current flows, the external field exerts forces on it ($\vec{F}=\int I\,d\vec{l}\times\vec{B}$) – and by Lenz's law those forces always resist the motion that causes the induction. Only the segments of the loop actually inside the field feel a force, which can make a loop accelerate, rotate, or brake. This is the origin of eddy currents 涡电流 braking, and you can apply Newton's second law to a moving loop or rod like any other mechanics problem.

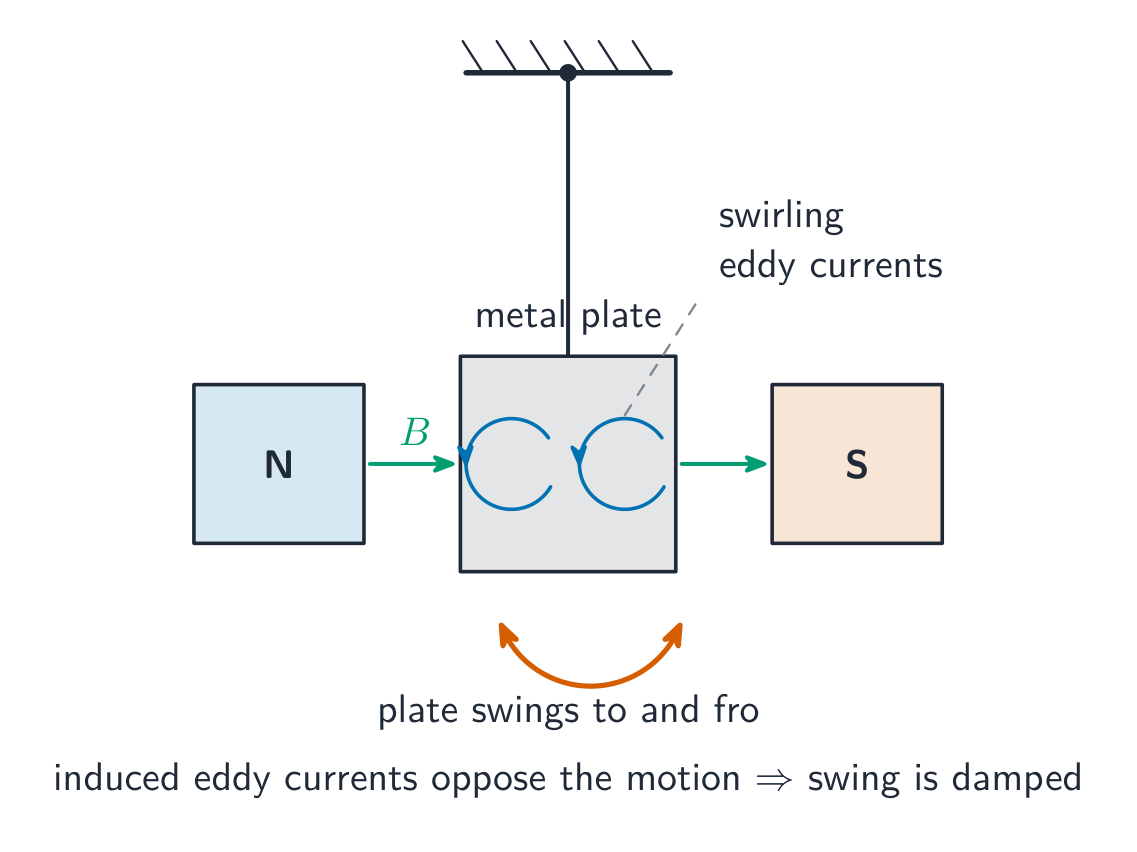

Induced eddy currents oppose motion, quickly damping a metal plate swinging in a field
Induced eddy currents oppose motion, quickly damping a metal plate swinging in a field

The classic setup is a rod sliding on conducting rails connected by a resistor:

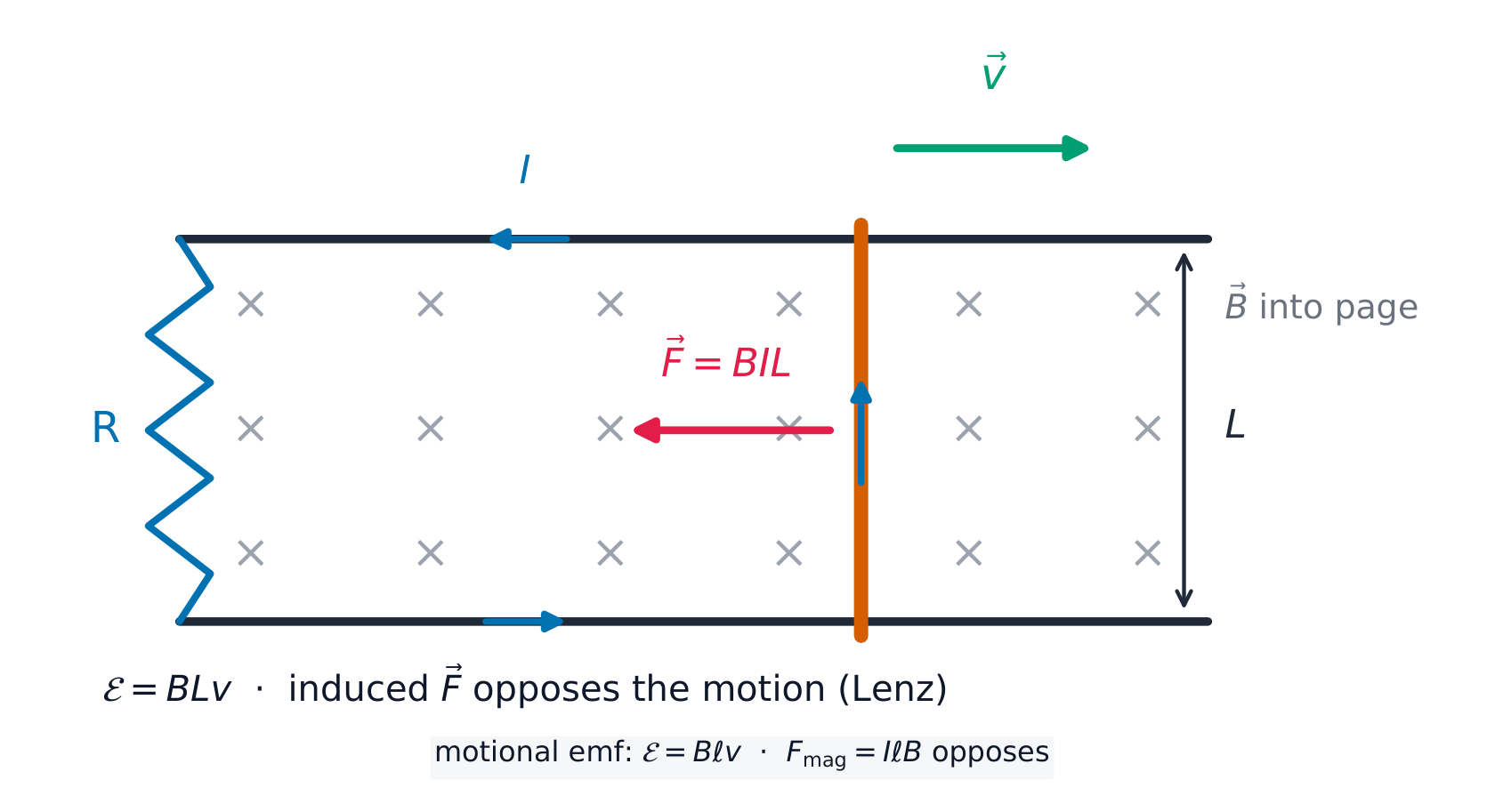

A rod sliding on rails: the induced current feels a force opposing the motion
A rod sliding on rails: the induced current feels a force opposing the motion

Worked example (the full chain). Rails $L=0.20\ \text{m}$ apart with resistance $R=0.60\ \Omega$ sit in a $0.50\ \text{T}$ field into the page. The rod is pushed at a constant $3.0\ \text{m/s}$. Then: $\varepsilon=BLv=0.30\ \text{V}$; $I=\varepsilon/R=0.50\ \text{A}$; the field pushes back on the rod with $F=BIL=0.50(0.50)(0.20)=0.050\ \text{N}$. The pushing force does work at $P=Fv=0.15\ \text{W}$ – exactly the $P=I^2R=0.15\ \text{W}$ dissipated in the resistor. Mechanical work becomes electrical energy: that is a generator 发电机, and energy is conserved. Released with no push, the rod slows exponentially: $ma=-\dfrac{B^2L^2}{R}v$.

Worked example (falling bar, terminal velocity). A bar of mass $m=0.020\ \text{kg}$ and length $L=0.25\ \text{m}$ falls from rest down vertical rails joined at the top by $R=0.50\ \Omega$, in a horizontal field $B=0.40\ \text{T}$. At speed $v$ the current is $\dfrac{BLv}{R}$, so the upward magnetic force is $\dfrac{B^2L^2v}{R}$. Newton's second law:

$$m\frac{dv}{dt}=mg-\frac{B^2L^2}{R}v.$$

At terminal velocity the two forces balance: $v_T=\dfrac{mgR}{B^2L^2}=\dfrac{(0.020)(9.8)(0.50)}{(0.40)^2(0.25)^2}=9.8\ \text{m/s}$. Separating variables gives $v(t)=v_T\big(1-e^{-t/\tau}\big)$ with $\tau=\dfrac{mR}{B^2L^2}=1.0\ \text{s}$. At terminal velocity gravity does work at $mgv_T=1.9\ \text{W}$, which equals $I^2R$ with $I=1.96\ \text{A}$: all the lost gravitational energy heats the resistor.

Loops moving through a field region. The emf depends on the change in flux, not on the flux itself. When a loop enters a field region, the flux grows and a current flows; while the loop is wholly inside a uniform field, the flux is constant, so there is no current and no magnetic force, even though the loop is full of field. Only the edge that is in the field feels a force, and it always opposes the motion.

A loop crossing a field region: flux rises, stays constant, then falls, so the emf is non-zero only while the loop enters or leaves
A loop crossing a field region: flux rises, stays constant, then falls, so the emf is non-zero only while the loop enters or leaves

Worked example (rotating ring). A ring of area $A=0.50\ \text{m}^2$ and resistance $R=2.0\ \Omega$ spins at $\omega=10\ \text{rad/s}$ about a diameter perpendicular to a uniform field $B=0.50\ \text{T}$. Then $\Phi_B=BA\cos\omega t$ and $\varepsilon=-\dfrac{d\Phi_B}{dt}=BA\omega\sin\omega t$, so $\varepsilon_{\max}=BA\omega=2.5\ \text{V}$ and $I_{\max}=1.25\ \text{A}$. The emf is largest when the ring's plane is parallel to the field, where the flux is zero but changing fastest. Spin it twice as fast and $\varepsilon_{\max}$ doubles, so the power $\varepsilon^2/R$ is four times as large.

Exam skill. FRQs walk this exact chain: flux $\to$ emf $\to$ current $\to$ force $\to$ Newton's second law. Write each link separately and check the direction with Lenz's law at the end.

Explore

Watch the opposition

Push the magnet in and out and see the induced current reverse to always oppose the change.

Vocabulary Train
English
eddy currents/ˈedi ˈkʌrənts/
generator/ˈdʒenəreɪtə/
13.4

Inductance

Syllabus
Learning ObjectiveEssential Knowledge

13.4.A
Describe the physical and electrical properties of an inductor.

  • 13.4.A.1 Inductance is the tendency of a conductor to oppose a change in electrical current.
    • 13.4.A.1.i Inductance of a conductor depends on the physical properties of the conductor. Straight wires are typically modeled as having zero inductance.
    • 13.4.A.1.ii An inductor, such as a solenoid, is a circuit element that has significant inductance.
    • 13.4.A.1.iii The inductance of a solenoid is dependent on the total number of turns, the length of the solenoid, the cross-sectional area of the solenoid, and magnetic permeability of the solenoid's core.
      • Equation: $L_{\text{sol}} = \dfrac{\mu_{\text{core}} N^2 A}{\ell}$
  • 13.4.A.2 Inductors store energy in the magnetic field that is generated by current in the inductor.
    • Equation: $U_L = \dfrac{1}{2} L I^2$
    • 13.4.A.2.i The energy stored in the magnetic field generated by an inductor in which current is flowing can be dissipated through a resistor or used to charge a capacitor.
    • 13.4.A.2.ii The transfer of energy generated in an inductor to other forms of energy obeys conservation laws.
  • 13.4.A.3 By applying Faraday's law to an inductor and using the definition of inductance, induced emf can be related to inductance and the rate of change of current.
    • Equation: $\mathcal{E}_i = -L\dfrac{dI}{dt}$

Source: College Board AP Course and Exam Description

Inductance 电感 is a conductor's tendency to oppose a change in its own current: changing current changes its own flux, which self-induces an emf. From Faraday's law,

$$\varepsilon=-L\frac{dI}{dt}.$$

An inductor 电感器 is a circuit element built to have large inductance – usually a solenoid 螺线管, where geometry gives

$$L_{\text{sol}}=\frac{\mu_{\text{core}}N^2A}{\ell},$$

with $N$ total turns, area $A$, length $\ell$, and the magnetic permeability 磁导率 of the core. (Straight wires are modelled as having zero inductance.) An inductor carrying current $I$ stores energy in its magnetic field:

$$U_L=\tfrac{1}{2}LI^2,$$

which can later be dissipated in a resistor or moved into a capacitor – conservation of energy applies as usual.

Explore

Inductance opposes change

A changing current in a coil induces a back-EMF proportional to how fast the current changes.

Vocabulary Train
English
inductance/ɪnˈdʌktəns/
inductor/ɪnˈdʌktə/
solenoid/ˈsəʊlənɔɪd/
magnetic permeability/mæɡˈnetɪk ˌpɜːməˈbɪlɪti/
13.5

Circuits with Resistors and Inductors

Syllabus
Learning ObjectiveEssential Knowledge

13.5.A
Describe the physical and electrical properties of a circuit containing a combination of resistors and a single inductor.

  • 13.5.A.1 A resistor will dissipate energy that was stored in an inductor as the current changes.
  • 13.5.A.2 Kirchhoff's loop rule can be applied to a series LR circuit with a battery of emf $\mathcal{E}$, resulting in a differential equation that describes the current in the loop.
    • Equation (derived): $\mathcal{E} = IR + L\dfrac{dI}{dt}$
  • 13.5.A.3 The time constant is a significant feature of the behavior of an LR circuit.
    • 13.5.A.3.i The time constant of a circuit is a measure of how quickly an LR circuit will reach a steady state and is described with the equation $\tau = \dfrac{L}{R_{\text{eq}}}$ .
    • 13.5.A.3.ii The time constant represents the time an LR circuit would take to reach a steady state if the system continued to change at the initial rate of change.
    • 13.5.A.3.iii For an inductor that has zero initial current, the time constant represents the time required for the current in the inductor to reach approximately 63 percent of its final asymptotic value.
    • 13.5.A.3.iv For an inductor with an initial current, the time constant represents the time required for the current in the inductor to reach approximately 37 percent of its initial value.
  • 13.5.A.4 The electric properties of inductors change during the time interval in which the current in the inductor changes, but will exhibit steady state behavior after a long time interval.
    • 13.5.A.4.i When a switch is initially closed or opened in a circuit containing an inductor, the induced emf will be equal in magnitude and opposite in direction to the applied potential difference across the branch containing the inductor.
    • 13.5.A.4.ii The potential difference across an inductor, the current in the inductor, and the energy stored in the inductor are exponential with respect to time and have asymptotes that are determined by the initial conditions of the circuit.
    • 13.5.A.4.iii After a time much greater than the time constant of the circuit, an inductor will behave as a conducting wire with zero resistance.

Source: College Board AP Course and Exam Description

In an RL circuit RL电路 starting with zero current, Kirchhoff's loop rule for a battery $\varepsilon$, resistor $R$, and inductor $L$ in series gives a differential equation 微分方程:

$$\varepsilon=IR+L\frac{dI}{dt}\quad\Rightarrow\quad I(t)=\frac{\varepsilon}{R}\big(1-e^{-t/\tau}\big),\qquad \tau=\frac{L}{R}.$$

The time constant 时间常数 $\tau$ sets the pace: after one $\tau$ a rising current reaches about $63\%$ of its final value (a decaying one falls to $37\%$); it is also how long the change would take at the initial rate. Learn the two limits – they answer most conceptual questions:

  • Just after the switch closes ($t=0$): current cannot jump, so the inductor momentarily blocks it, self-inducing an emf equal and opposite to the applied potential difference.
  • Long after ($t\gg\tau$): the current is steady, $dI/dt=0$, and the inductor behaves as a plain wire – the exact opposite of a capacitor.

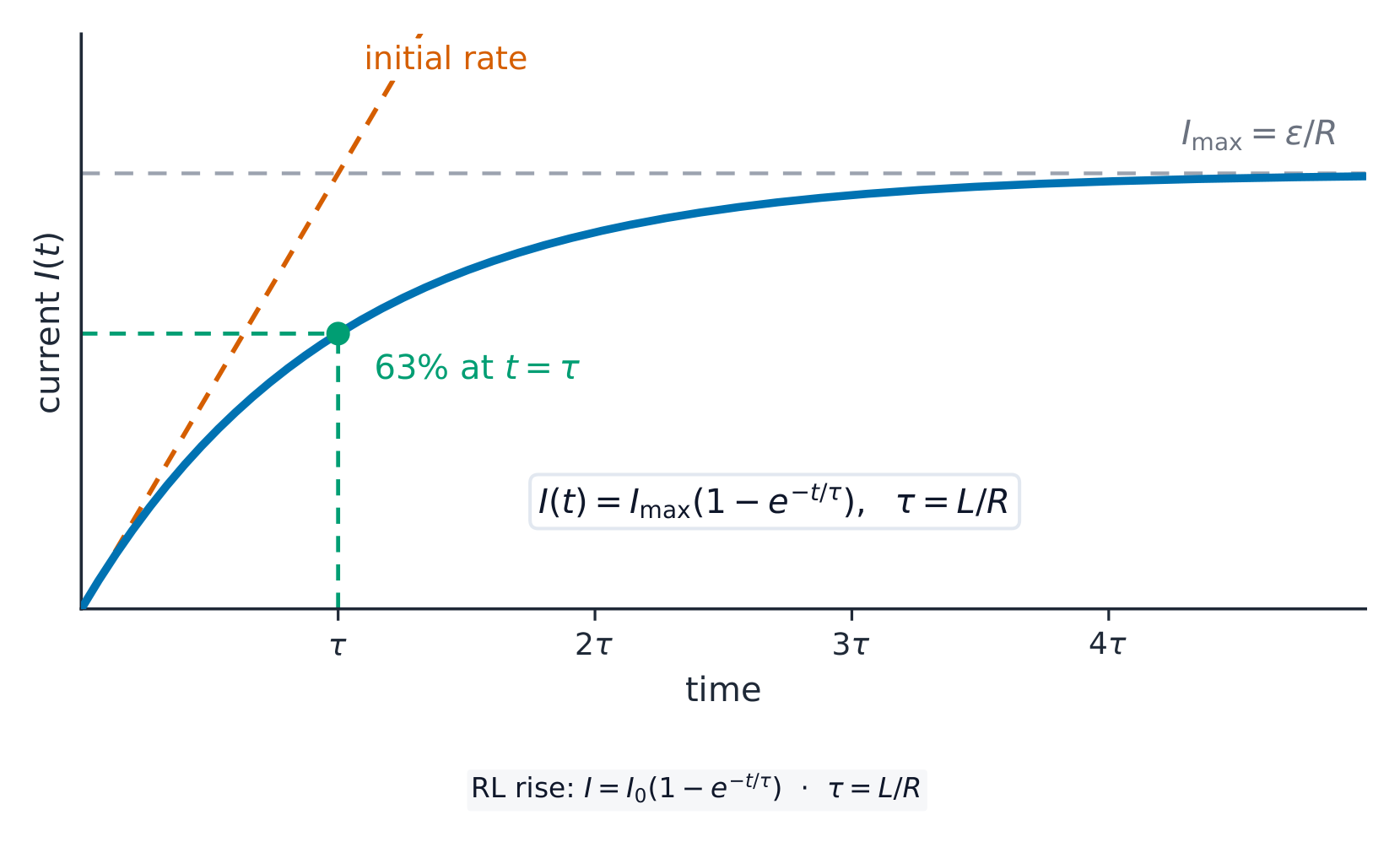

The current in an RL circuit rises exponentially, reaching 63% at one time constant
The current in an RL circuit rises exponentially, reaching 63% at one time constant

Worked example. $\varepsilon=12\ \text{V}$, $R=6.0\ \Omega$, $L=3.0\ \text{H}$: final current $\varepsilon/R=2.0\ \text{A}$, $\tau=L/R=0.50\ \text{s}$. At $t=0.50\ \text{s}$ the current is $2.0(1-e^{-1})\approx1.3\ \text{A}$. At $t=0$ the inductor's potential difference is the full $12\ \text{V}$; as $t\to\infty$ it falls to zero. The current approaches its final value exponentially, and the inductor voltage decays exponentially. Stored magnetic energy follows $U_B=\tfrac12 L[I(t)]^2$, so it is not a single exponential during this current growth.

Worked example (opening the switch). In the circuit above, a $30\ \Omega$ resistor is also connected in parallel with the inductor. Long after closing the switch, the inductor carries $2.0\ \text{A}$ and acts as a wire, so no current flows in the $30\ \Omega$ resistor. Now open the switch. The inductor's current cannot change instantly, so the full $2.0\ \text{A}$ now flows round the inductor–$30\ \Omega$ loop. The potential difference across that resistor is $(2.0)(30)=60\ \text{V}$, five times the battery's emf. The current then decays with $\tau=L/R=3.0/30=0.10\ \text{s}$, and the resistor dissipates all of the stored $\tfrac12LI^2=\tfrac12(3.0)(2.0)^2=6.0\ \text{J}$. This is why opening a switch on a large inductor can make a spark.

Exam skill (measuring $L$). Past FRQs ask for a straight-line graph that gives an inductance. Measure the time constant for several series resistances $R$: since $\tau=L/R$, a graph of $\tau$ against $1/R$ is a straight line through the origin with slope $L$. From one current–time curve, plot $\ln\!\big(1-I/I_{\max}\big)$ against $t$ instead: the slope is $-R/L$.

Explore

An LR circuit switching on

An inductor resists sudden change. Sort each fact by the moment it describes.

Vocabulary Train
English
differential equation/ˌdɪfəˈrenʃl ɪˈkweɪʒn/
time constant/taɪm ˈkɒnstənt/
RL circuit/ˌɑː ˈel ˈsɜːkɪt/
13.6

Circuits with Capacitors and Inductors

Syllabus
Learning ObjectiveEssential Knowledge

13.6.A
Describe the physical and electrical properties of a circuit containing a combination of capacitors and a single inductor.

  • 13.6.A.1 In circuits containing only a charged capacitor and an inductor (LC circuits), the maximum current in the inductor can be determined using conservation of energy within the circuit.
  • 13.6.A.2 In LC circuits, the time dependence of the charge stored in the capacitor can be modeled as simple harmonic motion.
    • Equation (derived): $\dfrac{d^2 q}{dt^2} = -\dfrac{1}{LC} q$
  • 13.6.A.3 The angular frequency of an oscillating LC circuit can be derived from the differential equation that describes an LC circuit.
    • Equation (derived): $\omega = \dfrac{1}{\sqrt{LC}}$

Source: College Board AP Course and Exam Description

LC circuit: energy sloshes like a spring

An LC circuit LC电路 has no resistance, so nothing dissipates energy: it oscillates 振荡, sloshing energy between the capacitor's electric field and the inductor's magnetic field. The loop rule gives

$$\frac{d^2q}{dt^2}=-\frac{1}{LC}\,q,$$

the same equation as a mass on a spring – simple harmonic motion 简谐运动 with charge playing the role of displacement and

$$\omega=\frac{1}{\sqrt{LC}}.$$

The total energy $\dfrac{q^2}{2C}+\tfrac12LI^2$ stays constant: all in the capacitor at maximum charge, all in the inductor at maximum current.

Worked example. $L=2.0\ \text{H}$, $C=8.0\ \mu\text{F}$: $\omega=\dfrac{1}{\sqrt{2.0(8.0\times10^{-6})}}=250\ \text{rad/s}$, period $T=2\pi/\omega\approx0.025\ \text{s}$. If the capacitor starts charged to $12\ \text{V}$, then $U=\tfrac12CV^2=5.8\times10^{-4}\ \text{J}$, and the maximum current follows from $\tfrac12LI_{\max}^2=U$: $I_{\max}=\sqrt{2U/L}=0.024\ \text{A}$ – conservation of energy 能量守恒, no calculus needed.

Explore

LC circuit oscillations

In an LC circuit energy sloshes between the capacitor and the inductor - the electrical version of simple harmonic motion.

Vocabulary Train
English
oscillates/ˈɒsɪleɪts/
simple harmonic motion/ˈsɪmpl hɑːˈmɒnɪk ˈməʊʃn/
conservation of energy/ˌkɒnsəˈveɪʃn ɒv ˈenədʒi/
LC circuit/ˌel ˈsiː ˈsɜːkɪt/
13.6

Exam tips

  • Compute flux $\Phi_B=\int \vec B\cdot d\vec A$ and get the induced EMF from Faraday's law $\varepsilon=-\tfrac{d\Phi_B}{dt}$.
  • Use Lenz's law (the minus sign) to fix the direction: the induced current opposes the change in flux.
  • Flux changes three ways — changing $B$, changing area, or changing angle — identify which and differentiate.
  • For a rod of length $L$ moving at speed $v$ with the rod, motion and field mutually perpendicular, the motional EMF is $BLv$.
  • An inductor stores energy $\tfrac12 LI^2$ and resists changes in current (RL time constant $\tau=L/R$).

Common mistakes

  • Using the full $B$ in the flux when the field is at an angle. $\Phi_B = BA\cos\theta$, with $\theta$ between $\vec B$ and the normal to the loop.
  • Saying the induced current opposes the field. It opposes the change in flux: if the flux falls, the induced field points the same way as the original.
  • Treating an inductor like a capacitor at $t = 0$. Just after switching on from zero current, an inductor carries no current (like a break); after a long time it acts as a plain wire.
  • Forgetting energy in an $LC$ circuit swaps between $\tfrac12 CV^2$ and $\tfrac12 LI^2$ with the total constant.
  • Saying a loop wholly inside a uniform field has a current because it is "in a field". Only a changing flux induces an emf.
  • Using $B$ at one distance for the flux from a long wire. The field changes across the loop, so integrate strips: the answer has a $\ln$.
  • Thinking an inductor's current stops the moment a switch opens. It keeps flowing, through whatever path is left, and decays with $\tau=L/R$ of that path.

Interactive lessons on this topic

Work through it step by step, with instant-check exercises.

Past Papers

More topics in AP Physics C: Electricity and Magnetism

Log in or create account

IGCSE, A-Level & AP
