Matrices Modeling Contexts
Introduced| English | Meaning |
|---|---|
| state vector/steɪt ˈvektə/ | state vector |
| state/steɪt/ | A possible category or condition occupied by an item in a transition model. |
| transition matrix/trænˈsɪʃn ˈmeɪtrɪks/ | transition matrix |
Predicting the future with a matrix
- Every year, some people move from the city to the suburbs, and some move back.
- Given this year's populations, can you predict next year's?
- A matrix can store the movement rates and do the prediction for you.
- This is how matrices model populations, markets, weather, and more.
State vectors: the current picture
- Collect the current amounts into a state vector 状态向量 — one entry per category.
- For a city and its suburbs: $\begin{bmatrix}\text{city}\\ \text{suburb}\end{bmatrix}$, say $\langle 600, 400\rangle$ (thousands).
- Each state 状态 is one thing being tracked; the vector is a snapshot in time.
- Next year's snapshot will be a new state vector.
A state vector in this kind of model holds…
Difficulty 1/5 · 100 coins + a small bonus on first completion today
A state vector lists how much is in each category right now — one entry per state.
The transition matrix: the rules
- A transition matrix 转移矩阵 stores the fraction moving between every pair of states.
- Each number is a rate: e.g. $5\%$ of city dwellers move to the suburbs each year.

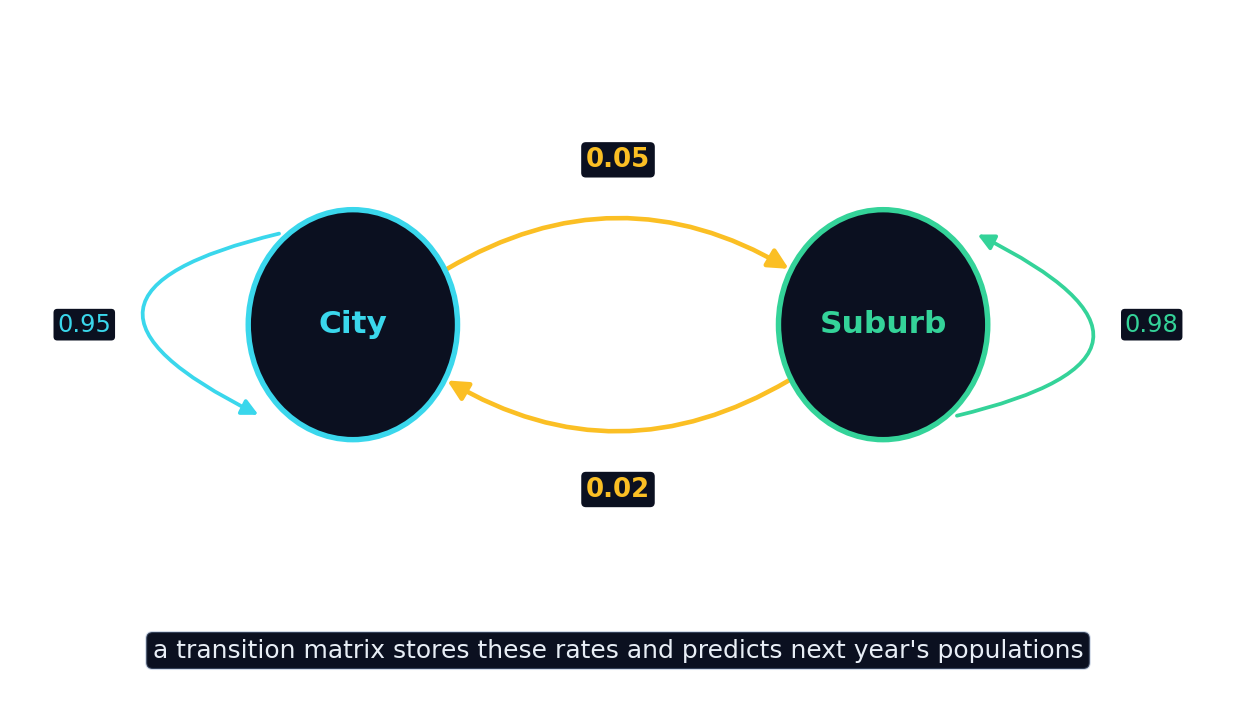

- The diagram below shows two states with the movement rates on the arrows.
- Those same rates become the entries of the matrix.
The matrix that stores the rates of movement between states is called the ____ matrix.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
The transition matrix holds the fraction moving from each state to each other state.
Multiplying the transition matrix by the current state vector gives the previous state.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
False. One matrix-times-vector step advances the model by one period, predicting the next state.
Stepping forward in time
- Multiply the transition matrix by the current state vector to get next year's.
- One matrix-times-vector = one year forward.
- Want two years? Multiply again. Ten years? Multiply ten times.
- The model marches forward, one step per multiplication.
A good use of a matrix?
Matrices model transformations, systems and transitions. Sort each task.
To predict the state two periods ahead, you…
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Each multiplication advances one period, so two periods need two multiplications (or multiply by the matrix squared).
Select all true statements about matrix models.
Difficulty 2/5 · 140 coins + a small bonus on first completion today
The same transition matrix is reused each period — you do not redraw it. The other three are correct.
The long run
- Repeated steps often settle toward a steady state that stops changing.
- At the steady state, as many people leave the city as arrive — populations hold constant.
- Matrices let you find this long-run balance without simulating every single year.
- The same idea powers web-page ranking, genetics, and epidemic models.
Set the model up consistently: decide once whether the state vector is a column multiplied on the right of the matrix, and make each column's (or row's) rates add to $1$ so no one is lost or invented. A mismatched setup silently gives nonsense predictions.
City $= 600$, suburb $= 400$ (thousands). Each year $5\%$ of city → suburb, $2\%$ of suburb → city.
- Leaving the city: $0.05 \times 600 = 30$; arriving: $0.02 \times 400 = 8$.
- New city $= 600 - 30 + 8 = 578$; new suburb $= 400 + 30 - 8 = 422$.
- The matrix does exactly this arithmetic in a single multiplication.
A state vector holds the current amount in each state, and a transition matrix stores the rates of movement between them. Multiplying the matrix by the state vector steps the model one period forward; repeating it predicts the long-run behaviour. This is how matrices model real-world change.
Write from a next state of (4, 6)
- The transition matrix has rows (1, 0) and (0, 2).
- The current state is (4, 3).
- Find the next state.
A transition matrix with rows (1, 0) and (0, 2) multiplies the state vector (4, 3). What is the next state vector?
2 times 3 is 6.
What is the next state?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Only the second state is scaled by 2.
