Refraction
Introduced| English | Meaning |
|---|---|
| refraction/rɪˈfrækʃn/ | A change in a wave's direction when it crosses a boundary at an angle and its speed changes. |
| refractive index/rɪˈfræktɪv ˈɪndeks/ | For a medium, the ratio of the speed of light in a vacuum to its phase speed in that medium. |
A straw in a glass looks snapped in half
- Drop a straw into a glass of water and it appears bent at the surface.
- The straw is fine — it's the light that bends as it crosses from water to air.
- Light changes direction when it moves between materials — refraction 折射.
- It happens because light travels at different speeds in different media.
Why light bends
- Light moves slower in a denser medium (glass, water) than in air.
- Entering a slower medium, a ray bends toward the normal; leaving it, away from the normal.
- The bending is set by each material's refractive index 折射率 $n$ (higher $n$ = slower light).
- Air is about $n = 1$; water $\approx 1.33$; glass $\approx 1.5$.
Bend a ray at a boundary
Change the angle and medium and watch the ray bend toward or away from the normal.
Entering a denser medium (like glass), a light ray bends:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Slower in a denser medium, the ray bends toward the normal.
The property $n$ that measures how much a material slows light is its ____.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
A higher refractive index means light travels slower in that material.

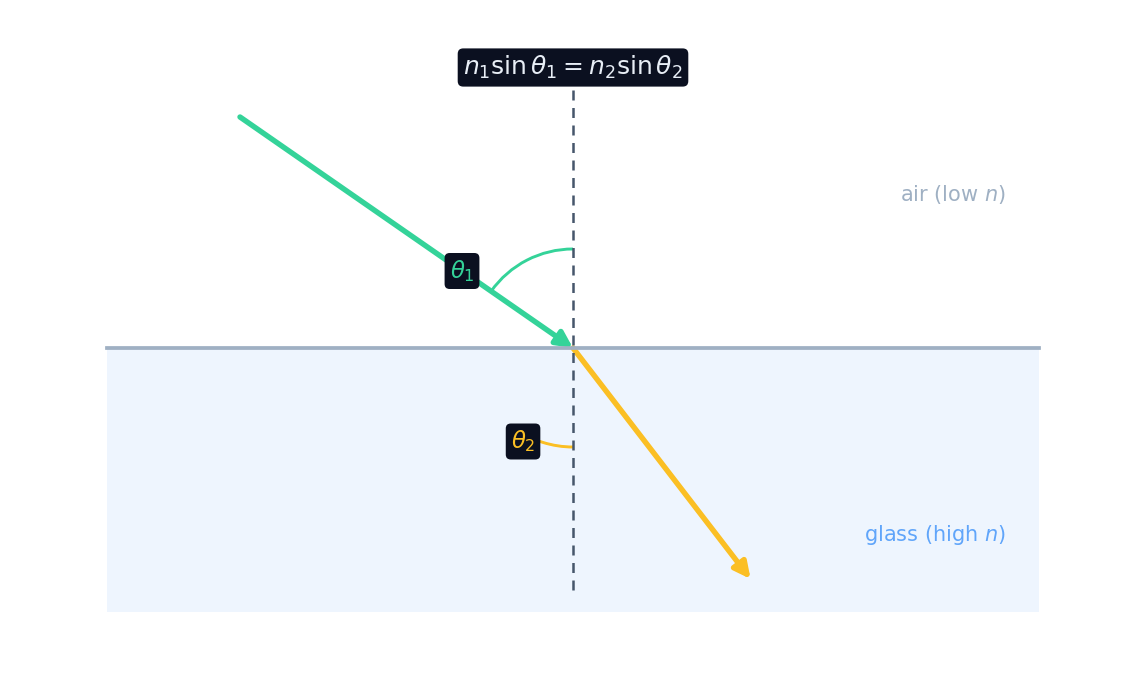

Snell's law
- The angles and indices are linked by Snell's law: $n_1\sin\theta_1 = n_2\sin\theta_2$.
- Angles are measured from the normal, as always in optics.
- Going into a denser medium ($n_2 > n_1$) makes $\theta_2 < \theta_1$ — the ray bends toward the normal.
- Snell's law predicts exactly how much a ray bends at any boundary.
Light goes from air ($n_1 = 1$) into glass ($n_2 = 1.5$) at $\theta_1 = 30^\circ$ ($\sin 30^\circ = 0.5$). What is $\sin\theta_2$? (Give a decimal.)
Difficulty 2/5 · 140 coins + a small bonus on first completion today
$\sin\theta_2 = n_1\sin\theta_1 / n_2 = 0.5 / 1.5 = 0.33$.
Which expresses Snell's law?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Snell's law: $n_1\sin\theta_1 = n_2\sin\theta_2$.
Total internal reflection
- Going the other way (dense to less dense), the ray bends away from the normal.
- Past a critical angle, it can't escape at all and reflects entirely back inside.
- This total internal reflection traps light in optical fibres and sparkles in diamonds.
- It is refraction taken to its extreme — no light gets out.
Past the critical angle, light going from glass to air is totally internally reflected.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Beyond the critical angle the ray can't escape and reflects entirely — total internal reflection.
Select all true statements about refraction.
Difficulty 2/5 · 140 coins + a small bonus on first completion today
Refraction is a speed effect obeying Snell's law; a ray along the normal ($\theta = 0$) does not bend at all.
Refraction bends light because its speed changes between media — not because it "wants to". Light bends toward the normal entering a denser (slower, higher-$n$) medium, and away from it leaving one. A ray hitting the boundary straight along the normal ($\theta_1 = 0$) does not bend.
Light passes from air ($n_1 = 1$) into glass ($n_2 = 1.5$) at $\theta_1 = 30^\circ$. Find $\sin\theta_2$.
- Snell: $1 \times \sin 30^\circ = 1.5 \times \sin\theta_2 \Rightarrow \sin\theta_2 = \dfrac{0.5}{1.5} = 0.33$.
Since $\sin\theta_2 < \sin\theta_1$, the ray bends toward the normal, as expected for a denser medium.
Refraction bends light at a boundary because its speed changes; it bends toward the normal entering a denser (higher-$n$) medium. Snell's law: $n_1\sin\theta_1 = n_2\sin\theta_2$. Past a critical angle, dense-to-rare light undergoes total internal reflection — the basis of optical fibres.
Write from a sine of 0.25
- Light goes from air into a medium of refractive index 2.
- The angle in air is 30 degrees and sin 30 degrees is 0.5. Find sin of the angle in the medium.
Light passes from air, refractive index 1, into a medium of refractive index 2. The angle in air is 30 degrees and sin of 30 degrees is 0.5. What is sin of the angle in the medium?
0.5 divided by 2 is 0.25.
What is sin of the angle in the medium?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Index times sine is unchanged, so 0.5 divided by 2 is 0.25. Other options — 0.33 (the lesson glass result); 0.5 (the sine in air left unchanged).
