Compton Scattering
Introduced| English | Meaning |
|---|---|
| Compton scattering/ˈkɒmptn ˈskætərɪŋ/ | Scattering of a photon by an electron; for an initially stationary free electron, the scattered wavelength increases unless scattering is directly forward. |

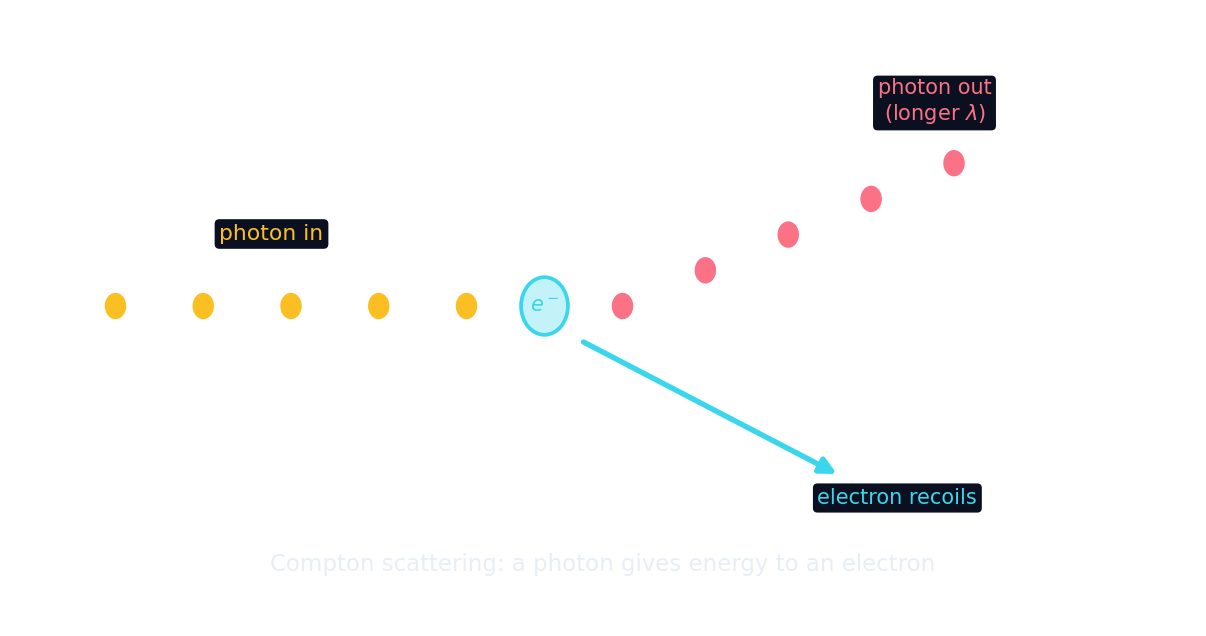

A photon bounces off an electron — like billiard balls
- Fire a high-energy photon at an electron and it bounces off, exactly like two balls colliding.
- The photon comes away with less energy; the electron recoils, taking the difference.
- This is Compton scattering 康普顿散射, and it clinched the case that light carries momentum.
- If a photon can collide like a ball, it must be a particle in every sense.
A photon has momentum
- A photon carries not just energy but also momentum: $p = \dfrac{h}{\lambda}$.
- In the collision, both energy and momentum are conserved — just like a normal collision.
- The photon transfers some of both to the electron, which recoils away.
- Treating the photon as a particle with momentum predicts the outcome exactly.
A photon's momentum is given by:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
A photon carries momentum $p = h/\lambda$.
In Compton scattering, which quantities are conserved?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
It is a genuine collision — both energy and momentum are conserved.
The scattered photon is redder
- Since the photon gives energy to the electron, the scattered photon has less energy.
- Less energy means a lower frequency and a longer wavelength — a shift toward red.
- The bigger the scattering angle, the more energy is handed over.
- Measuring this wavelength shift confirmed the photon's momentum.
After scattering off an electron, the photon's wavelength is:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
The photon loses energy to the electron, so its wavelength gets longer.
A larger scattering angle means the photon transfers more energy to the electron.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
The bigger the angle, the more energy (and momentum) is handed to the electron.
Why it mattered
- The photoelectric effect showed photons carry energy; Compton showed they carry momentum.
- Together they made the particle nature of light undeniable.
- The clean billiard-ball maths (conserving energy and momentum) only works if photons are real particles.
- Compton scattering is used today in gamma-ray astronomy and medical imaging.
Compton scattering
An X-ray photon collides with an electron. Sort each outcome.
Compton scattering shows that photons carry ____ as well as energy.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
The collision only makes sense if photons carry momentum.
Select all true statements about Compton scattering.
Difficulty 2/5 · 140 coins + a small bonus on first completion today
The photon loses energy (longer wavelength), and the collision conserves energy and momentum. It never gains energy.
In Compton scattering the photon loses energy to the electron, so the scattered light has a longer wavelength (redder), not a shorter one. It is a genuine collision: both energy and momentum are conserved, exactly as for colliding balls.
A photon scatters off a stationary electron. What happens to the photon's wavelength?
- The photon gives energy to the electron, so it leaves with less energy.
- Less energy means a longer wavelength — the scattered photon is shifted toward red.
Compton scattering is a photon colliding with an electron like a billiard ball, conserving energy and momentum. The photon has momentum $p = h/\lambda$; after the collision it has less energy and a longer wavelength, and the electron recoils. It proved light carries momentum — confirming the photon particle.
Write from a wavelength increase of 5 pm
- A photon of wavelength 200 pm scatters off an electron.
- The scattered photon has wavelength 205 pm. Find the increase, and say what it shows.
A photon of wavelength 200 pm collides with an electron and scatters. The scattered photon has wavelength 205 pm. By how much did the wavelength increase, and what does that show about the photon?
205 minus 200 is 5.
By how much did the scattered wavelength increase?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
The scattered wavelength minus the incoming wavelength is 5 pm. Other options — 200 pm (the original wavelength); 205 pm (the scattered wavelength used as the increase).
